| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
VW
05L903026B, 05L903026BX, 05L903026N |
| |
|
| |
AUDI
A3 Limousine, A3 Sportback, Q3, Q3 Sportback
CUPRA
FORMENTOR
SEAT
LEON, LEON Sportstourer, TARRACO
SKODA
OCTAVIA IV, OCTAVIA IV Combi, SUPERB
VW
ARTEON, ARTEON SHOOTING BRAKE, CADDY CALIFORNIA V Camper, CADDY V Box Body/MPV, CADDY V MPV, GOLF VIII, GOLF VIII Variant, PASSAT, TIGUAN, T-ROC |
| |
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 140
Article number of recommended accessories ZN5829
Belt Pulley Ø [mm] 52
Clamp M8 B+
Distance from belt pulley to alternator [mm] 40
Manufacturer Restriction Always Cross by OE
Net weight [kg] 6,9
Number of grooves 6
Plug Type ID COM/LIN2, COM/LIN2i
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Vehicle Main Current for vehicles with 12V main current
Voltage [V] 12
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
FORD
BJ32-10300-CA, BJ32-10300-CB, BJ32-10300-CC
LAND ROVER
LR028121, LR031027 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 180
Belt Pulley Ø [mm] 58
Bore Diameter 1 [mm] 9,2
Clamp LIN-D, M8 B+
Number of ribs 6
Pulleys with freewheel belt pulley
Voltage [V] 12
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 80
Belt Pulley Ø [mm] 62
Bore Diameter 1 [mm] 10
Clamp L Plug 283, M8 B+
Number of grooves 7
Pulleys with belt pulley
Vehicle Main Current for vehicles with 12V main current
Voltage [V] 12
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 90
Belt Pulley Ø [mm] 60
Bore Diameter 1 [mm] 10,5
Clamp M8
Number of grooves 8
Rotation Direction Clockwise rotation
Vehicle Main Current for vehicles with 12V main current
Voltage [V] 12
|
|
| |
|
| |
|
|

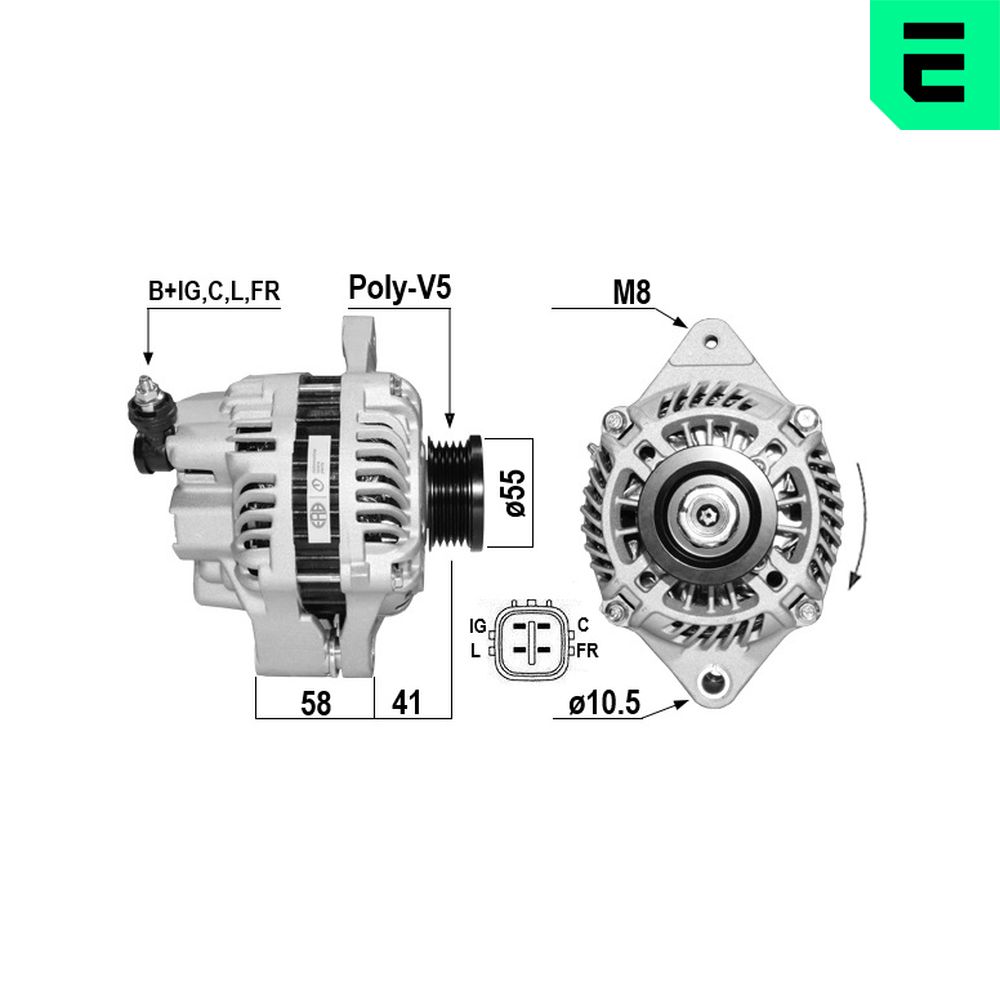

| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
MITSUBISHI
A005TA6891, A005TA6891A, A005TB0891, A1TA2591, A5TA6891, A5TA6891A, A5TB0891
SUZUKI
31400-60G10, 31400-60G11, 31400-60G12, 31400-60G13, 31400-66D10, 31400-66D11, 31400-80G00, 37400-76A00 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 70
Belt Pulley Ø [mm] 55
Bore Diameter 1 [mm] 10
Clamp L-IG-D (Dummy), M6 B+
Number of grooves 4
Rotation Direction Clockwise rotation
Vehicle Main Current for vehicles with 12V main current
Voltage [V] 12
|
|
| |
|
| |
|
|
|
Original equipment numbers and pictures in this catalogue are used for reference purposes only
|
|
|
