| ALTERNATOR |
| |
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
TOYOTA
27060-28110, 2706028110, 27060-28120, 2706028120 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 90
Belt Pulley Ø [mm] 55
Clamp B+ / S / IG / L
Exchange Part
Fastening Type 3-point attachment
Number of ribs 7
Pulleys with v-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
Weight [kg] 5,42
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
CITROËN
5702K0, 5705 CW, 5705EG, 5705KW, 96 519 274 80, 96 600 550 80, 9666030280
CITROËN/PEUGEOT
5705 CW, 96 519 274 80, 96 600 550 80
MITSUBISHI
A005TG0192A, A005TG0192B, A005TG1392, A005TG1392A, A005TG1392B, A5TG0192A, A5TG0192B, A5TG1392, A5TG1392A, A5TG1392B
PEUGEOT
5702K0, 5705 CW, 5705EG, 5705KW, 96 519 274 80, 96 600 550 80 |
| |
|
|
|
|
|
|
|
| |
| |

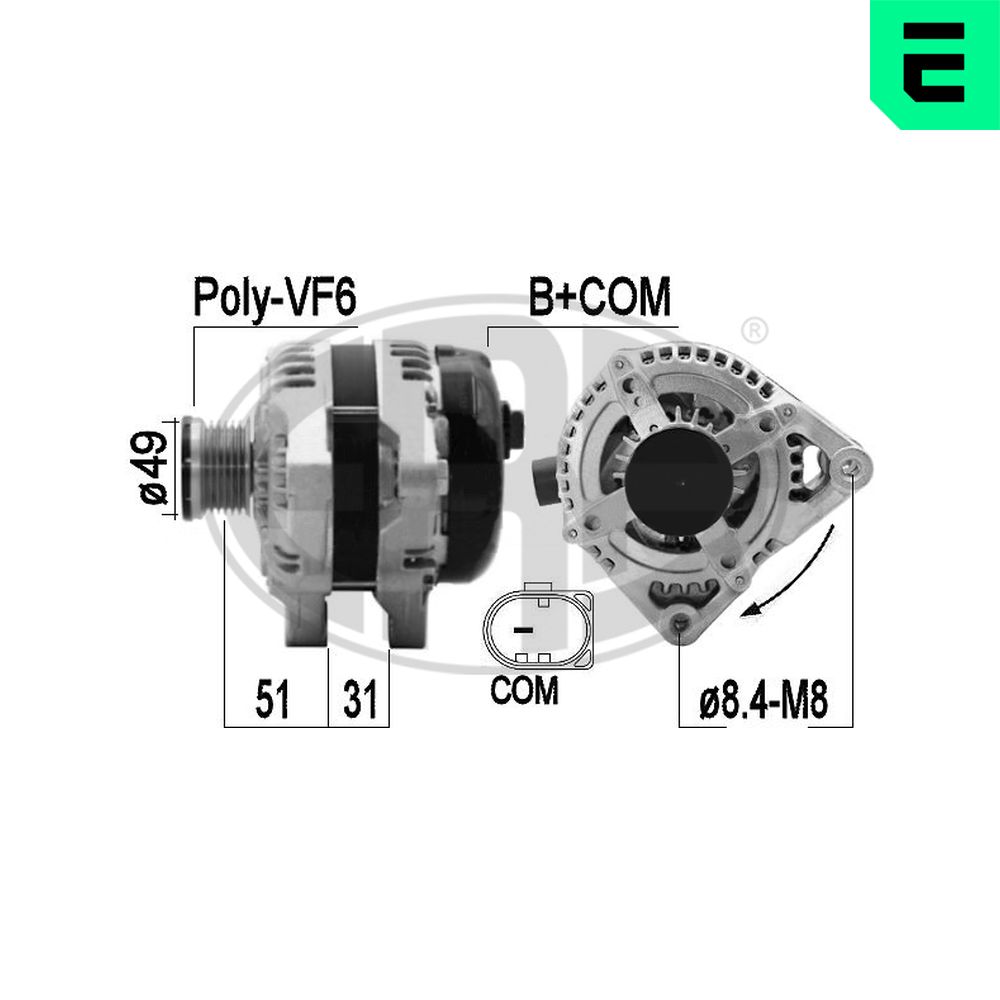

Article Information
Alternator Charging Current [A] 80
Belt Pulley Ø [mm] 49
Bore Diameter 1 [mm] 10
Distance from belt pulley to alternator [mm] 51
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+COM
Pulleys with multi-belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
CITROËN
5705-CW, 5705CW, 5705-EG, 5705EG, 5705-KW, 5705KW
MITSUBISHI
A005TG0192, A005TG0192A, A005TG0192B, A005TG1392, A005TG1392A, A005TG1392B, A5TG1392, A5TG1392A, A5TG1392B
PEUGEOT
5705-CW, 5705CW, 5705-EG, 5705EG, 5705-KW, 5705KW, 9649880080, 9651923880, 9660055080, 9666030280 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 90
Belt Pulley Ø [mm] 49
Clamp B+
Exchange Part
Fastening Type Four-point attachment
Number of ribs 6
Position/Degree L 40
Pulleys with v-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
Weight [kg] 5,19
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
CHRYSLER
56044 672AA, 56044 672AB |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 150
Belt Pulley Ø [mm] 57
Distance from belt pulley to alternator [mm] 60
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+LDF
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
| |
Original equipment numbers and pictures in this catalogue are used for reference purposes only
|
|
|
