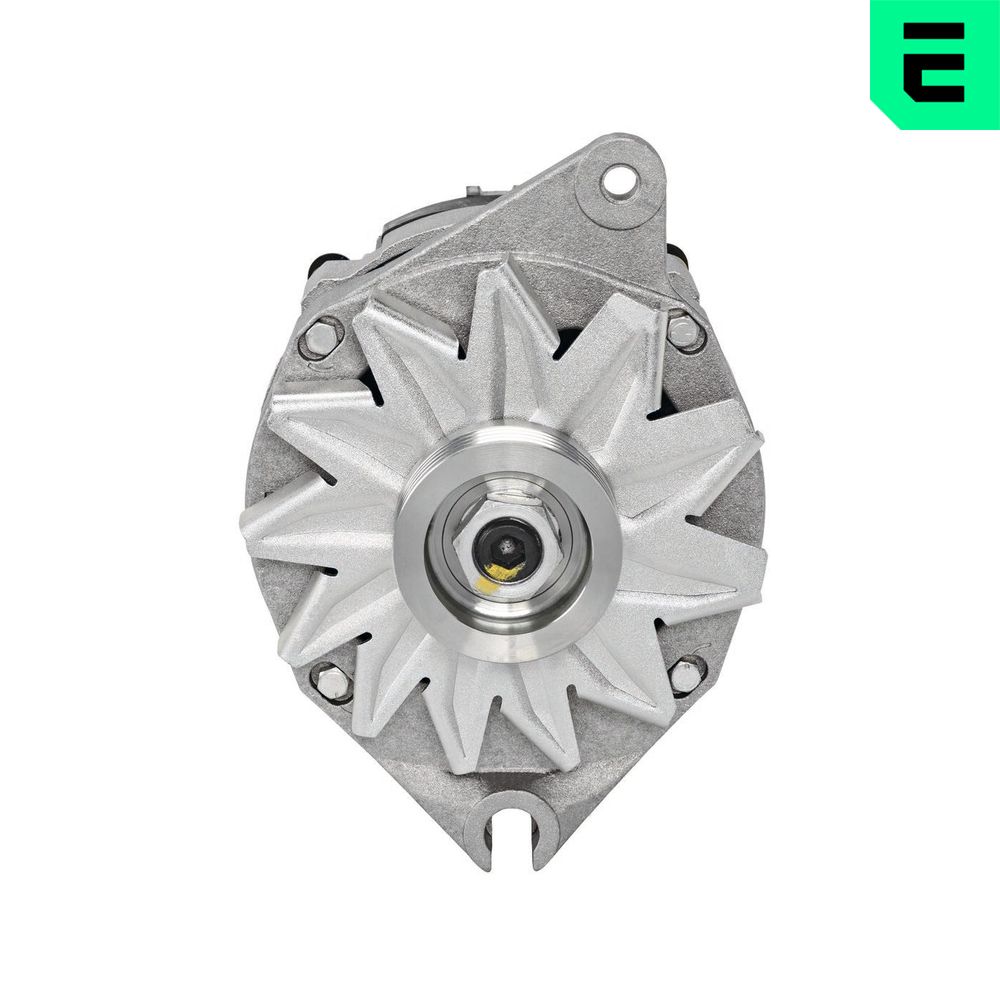

| ALTERNATOR |
| |
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
CITROËN
5557 24, 5705 25, 5705 80, 5705 Z0, 91 517 980, 91 517 981, 91 517 982, 91 517 983, 95 619 191
CITROËN/PEUGEOT
5557 24, 5705 25, 5705 80, 5705 Z0, 91 517 980, 91 517 981, 91 517 982, 91 517 983, 95 619 191
MITSUBISHI
A002T26391, A002T27091, A2T26391, A2T27091, A2T27091A, A2T27091B, A2T27091D
PEUGEOT
5557 24, 5705 25, 5705 80, 5705 Z0, 91 517 980, 91 517 981, 91 517 982, 91 517 983, 95 619 191 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 50
Belt Pulley Ø [mm] 56
Distance from belt pulley to alternator [mm] 46
Number of grooves 4
Number of mounting bores 2
Plug Type ID B+D+
Pulleys with v-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
CITROËN
5557 24, 5701-D0, 5701D0, 5705 25, 5705-25, 570525, 5705-2K, 57052K, 5705 80, 5705-Q5, 5705Q5, 5705 Z0, 5705-Z0, 5705Z0, 91 517 980, 91517980, 91 517 981, 91 517 982, 91 517 983, 95580159R, 95607231, 95 619 191, 95619191, 95619191R
CITROËN/PEUGEOT
5557 24, 5705 25, 5705 80, 5705 Z0, 91 517 980, 91 517 981, 91 517 982, 91 517 983, 95 619 191
FIAT
9615444380
MITSUBISHI
A002T26391, A002T27091, A2T26391, A2T27091, A2T27091A, A2T27091B, A2T27091D
PEUGEOT
5557 24, 5557-24, 555724, 5705 25, 5705-25, 570525, 5705-2K, 57052K, 5705 80, 5705-80, 570580, 5705-JQ, 5705JQ, 5705-Q5, 5705Q5, 5705 Z0, 91 517 980, 91 517 981, 91 517 982, 91 517 983, 95 619 191
TALBOT
5705-25, 570525, 5705-2K, 57052K, 5705-80, 570580, 5705-Q5, 5705Q5 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 50
Belt Pulley Ø [mm] 56
Clamp B+ / L
Exchange Part
Fastening Type 3-point attachment
Number of ribs 4
Position/Degree R 20
Pulleys with v-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
Weight [kg] 4,86
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
GENERAL MOTORS
R1 030 079
OPEL
12 04 091, 12 04 131, 12 04 349, 34 93 230, 34 93 741, 34 93 791, 90 337 796, 90 349 328, 91 63 935, 95 12 118 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 70
Belt Pulley Ø [mm] 72
Belts Without V-belt
Distance from belt pulley to alternator [mm] 87
Number of grooves 1
Number of mounting bores 2
Plug Type ID B+D+W
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
VW
038 903 018 F, 059 903 015 F, 059 903 015 FX, 059 903 015 G, 059 903 015 GX, 06C 903 016, 06C 903 016 A, 078 903 016 F, 078 903 016 H, 078 903 016 HX |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 120
Belt Pulley Ø [mm] 65
Distance from belt pulley to alternator [mm] 39
Extended description OEM
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+L,DFM
Pulleys with v-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
VW
038 903 018 F, 059 903 015 F, 059 903 015 FX, 059 903 015 G, 059 903 015 GX, 06C 903 016, 06C 903 016 A, 078 903 016 F, 078 903 016 H, 078 903 016 HX |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 120
Belt Pulley Ø [mm] 65
Distance from belt pulley to alternator [mm] 39
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+L,DFM
Pulleys with v-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
| |
Original equipment numbers and pictures in this catalogue are used for reference purposes only
|
|
|
