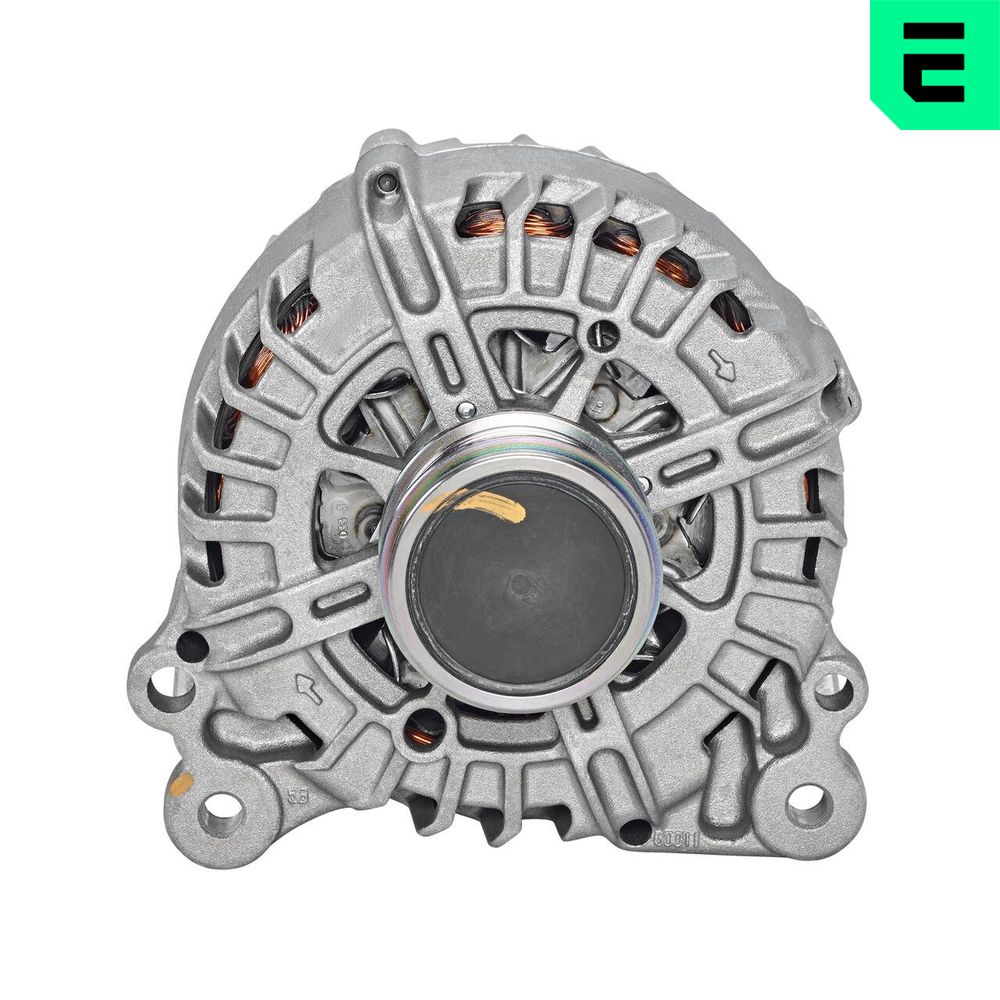

| ALTERNATOR |
| |
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
VW
04L 903 023 H, 04L 903 023 HX, 04L 903 023 J, 04L 903 023 JX |
| |
|
| |
AUDI
A3, A3 Sportback
SEAT
ALHAMBRA, ATECA, LEON, TARRACO
SKODA
KAROQ, KODIAQ, OCTAVIA, SUPERB
VW
ARTEON, GOLF, GOLF ALLTRACK, GOLF SPORTSVAN, PASSAT, PASSAT ALLTRACK, SHARAN, TIGUAN, TOURAN, T-ROC |
| |
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 180
Belt Pulley Ø [mm] 52
Distance from belt pulley to alternator [mm] 40
Manufacturer Restriction Bosch
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+LIN
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
AUDI
04L903021K, 04L903023H, 04L903023HX, 04L903023J, 04L903023JX, 4L903021K, 4L903023H, 4L903023HX, 4L903023J, 4L903023JX
SEAT
04L903021K, 04L903023H, 04L903023HX, 04L903023J, 04L903023JX, 4L903021K, 4L903023H, 4L903023HX, 4L903023J, 4L903023JX
SKODA
04L903021K, 04L903023H, 04L903023HX, 04L903023J, 04L903023JX, 4L903021K, 4L903023H, 4L903023HX, 4L903023J, 4L903023JX
VW
04L903021K, 04L903023H, 04L903023HX, 04L903023J, 04L903023JX, 4L903021K, 4L903023H, 4L903023HX, 4L903023J, 4L903023JX |
| |
|
| |
AUDI
A3, A3 Sportback
SEAT
ALHAMBRA, ALHAMBRA VAN, ATECA, LEON, TARRACO
SKODA
KAROQ, KODIAQ, OCTAVIA, SUPERB
VW
ARTEON, ARTEON SHOOTING BRAKE, GOLF, GOLF SPORTSVAN, PASSAT, PASSAT ALLTRACK, SHARAN, TIGUAN, TIGUAN SUV Van, TOURAN, TOURAN Box Body/MPV, T-ROC |
| |
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 180
Belt Pulley Ø [mm] 53
Clamp B+ / COM
Exchange Part
Fastening Type Four-point attachment
Number of ribs 6
Position/Degree R 90
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
Weight [kg] 7,78
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
MERCEDES-BENZ
000 808 15 03, 000 906 09 22, 000 906 15 03, 000 906 47 02, A 000 808 15 03, A 000 906 09 22, A 000 906 15 03, A 000 906 47 02 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 175
Belt Pulley Ø [mm] 52
Distance from belt pulley to alternator [mm] 42
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+LIN
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Supersedes article 209257
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
MERCEDES-BENZ
000 808 15 03, 000 906 09 22, 000 906 15 03, 000 906 47 02, A 000 808 15 03, A 000 906 09 22, A 000 906 15 03, A 000 906 47 02 |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 175
Article number of recommended accessories ZN5784
Belt Pulley Ø [mm] 52
Distance from belt pulley to alternator [mm] 42
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+LIN
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
|
| ERA p/n |
OE / Other p/n |
Used in vehicles |
|
|
|
|
ERA
|
| |
VW
059 903 018 S, 059 903 019 J, 059 903 019 M, 059 903 019 N |
| |
|
|
|
|
|
|
|
| |
| |
Article Information
Alternator Charging Current [A] 150
Belt Pulley Ø [mm] 56
Distance from belt pulley to alternator [mm] 38
Number of grooves 6
Number of mounting bores 2
Plug Type ID B+COM
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Voltage [V] 14
|
|
| |
|
| |
|
| |
Original equipment numbers and pictures in this catalogue are used for reference purposes only
|
|
|
